14.14  Dog Breed Identification (ImageNet Dogs) on Kaggle

In this section, we will practice the dog breed identification problem on Kaggle. The web address of this competition is https://www.kaggle.com/c/dog-breed-identification

In this competition, 120 different breeds of dogs will be recognized. In fact, the dataset for this competition is a subset of the ImageNet dataset. Unlike the images in the CIFAR-10 dataset in Section 14.13, the images in the ImageNet dataset are both higher and wider in varying dimensions. Figure 14.14.1 shows the information on the competition’s webpage. You need a Kaggle account to submit your results.

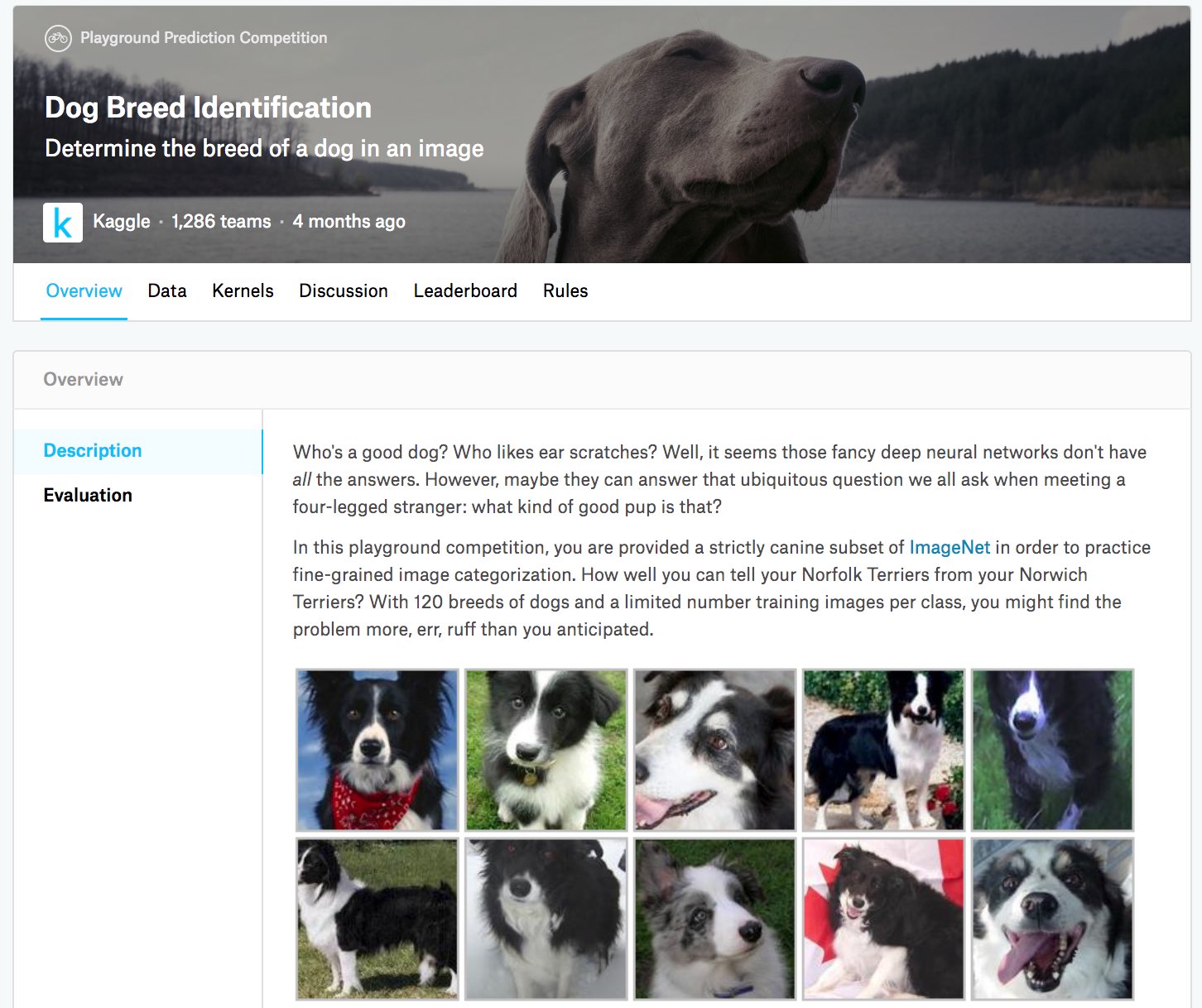

Figure 14.14.1: The dog breed identification competition website. The competition dataset can be obtained by clicking the “Data” tab.
from d2l import torch as d2l
import torch
import torchvision
from torch import nn
import os
from d2l import jax as d2l
import jax
from jax import numpy as jnp
from flax import linen as nn
import optax
import numpy as np
import tensorflow as tf
import os
from d2l import mxnet as d2l
from mxnet import autograd, gluon, init, npx
from mxnet.gluon import nn
import os

npx.set_np()

14.14.1 Obtaining and Organizing the Dataset

The competition dataset is divided into a training set and a test set, which contain 10222 and 10357 JPEG images of three RGB (color) channels, respectively. Among the training dataset, there are 120 breeds of dogs such as Labradors, Poodles, Dachshunds, Samoyeds, Huskies, Chihuahuas, and Yorkshire Terriers.

14.14.1.1 Downloading the Dataset

After logging into Kaggle, you can click on the “Data” tab on the competition webpage shown in Figure 14.14.1 and download the dataset by clicking the “Download All” button. After unzipping the downloaded file in ../data, you will find the entire dataset in the following paths:

  • ../data/dog-breed-identification/labels.csv
  • ../data/dog-breed-identification/sample_submission.csv
  • ../data/dog-breed-identification/train
  • ../data/dog-breed-identification/test

You may have noticed that the above structure is similar to that of the CIFAR-10 competition in Section 14.13, where folders train/ and test/ contain training and testing dog images, respectively, and labels.csv contains the labels for the training images. Similarly, to make it easier to get started, we provide a small sample of the dataset mentioned above: train_valid_test_tiny.zip. If you are going to use the full dataset for the Kaggle competition, you need to change the demo variable below to False.

d2l.DATA_HUB['dog_tiny'] = (d2l.DATA_URL + 'kaggle_dog_tiny.zip',
                            '0cb91d09b814ecdc07b50f31f8dcad3e81d6a86d')

# If you use the full dataset downloaded for the Kaggle competition, change
# the variable below to `False`
demo = True
if demo:
    data_dir = d2l.download_extract('dog_tiny')
else:
    data_dir = os.path.join('..', 'data', 'dog-breed-identification')

14.14.1.2 Organizing the Dataset

We can organize the dataset similarly to what we did in Section 14.13, namely splitting out a validation set from the original training set, and moving images into subfolders grouped by labels.

The reorg_dog_data function below reads the training data labels, splits out the validation set, and organizes the training set.

def reorg_dog_data(data_dir, valid_ratio):
    labels = d2l.read_csv_labels(os.path.join(data_dir, 'labels.csv'))
    d2l.reorg_train_valid(data_dir, labels, valid_ratio)
    d2l.reorg_test(data_dir)


batch_size = 32 if demo else 128
valid_ratio = 0.1
reorg_dog_data(data_dir, valid_ratio)

14.14.2 Image Augmentation

Recall that this dog breed dataset is a subset of the ImageNet dataset, whose images are larger than those of the CIFAR-10 dataset in Section 14.13. The following lists a few image augmentation operations that might be useful for relatively larger images.

transform_train = torchvision.transforms.Compose([
    # Randomly crop the image to obtain an image with an area of 0.08 to 1 of
    # the original area and height-to-width ratio between 3/4 and 4/3. Then,
    # scale the image to create a new 224 x 224 image
    torchvision.transforms.RandomResizedCrop(224, scale=(0.08, 1.0),
                                             ratio=(3.0/4.0, 4.0/3.0)),
    torchvision.transforms.RandomHorizontalFlip(),
    # Randomly change the brightness, contrast, and saturation
    torchvision.transforms.ColorJitter(brightness=0.4,
                                       contrast=0.4,
                                       saturation=0.4),
    # Add random noise
    torchvision.transforms.ToTensor(),
    # Standardize each channel of the image
    torchvision.transforms.Normalize([0.485, 0.456, 0.406],
                                     [0.229, 0.224, 0.225])])
IMAGENET_MEAN = np.array([0.485, 0.456, 0.406], dtype=np.float32)
IMAGENET_STD = np.array([0.229, 0.224, 0.225], dtype=np.float32)

def transform_train_fn(image, label):
    """Training augmentation: random crop, flip, color jitter, normalize."""
    image = tf.cast(image, tf.float32)
    # Random resized crop to 224x224
    image = tf.image.resize(image, [256, 256])
    image = tf.image.random_crop(image, size=[224, 224, 3])
    image = tf.image.random_flip_left_right(image)
    image = tf.image.random_brightness(image, max_delta=0.4 * 255)
    image = tf.image.random_contrast(image, lower=0.6, upper=1.4)
    image = tf.image.random_saturation(image, lower=0.6, upper=1.4)
    image = tf.clip_by_value(image, 0.0, 255.0)
    image = image / 255.0
    image = (image - IMAGENET_MEAN) / IMAGENET_STD
    return image, label
transform_train = gluon.data.vision.transforms.Compose([
    # Randomly crop the image to obtain an image with an area of 0.08 to 1 of
    # the original area and height-to-width ratio between 3/4 and 4/3. Then,
    # scale the image to create a new 224 x 224 image
    gluon.data.vision.transforms.RandomResizedCrop(224, scale=(0.08, 1.0),
                                                   ratio=(3.0/4.0, 4.0/3.0)),
    gluon.data.vision.transforms.RandomFlipLeftRight(),
    # Randomly change the brightness, contrast, and saturation
    gluon.data.vision.transforms.RandomColorJitter(brightness=0.4,
                                                   contrast=0.4,
                                                   saturation=0.4),
    # Add random noise
    gluon.data.vision.transforms.RandomLighting(0.1),
    gluon.data.vision.transforms.ToTensor(),
    # Standardize each channel of the image
    gluon.data.vision.transforms.Normalize([0.485, 0.456, 0.406],
                                           [0.229, 0.224, 0.225])])

During prediction, we only use image preprocessing operations without randomness.

transform_test = torchvision.transforms.Compose([
    torchvision.transforms.Resize(256),
    # Crop a 224 x 224 square area from the center of the image
    torchvision.transforms.CenterCrop(224),
    torchvision.transforms.ToTensor(),
    torchvision.transforms.Normalize([0.485, 0.456, 0.406],
                                     [0.229, 0.224, 0.225])])
def transform_test_fn(image, label):
    """Test preprocessing: resize, center crop, normalize."""
    image = tf.cast(image, tf.float32)
    image = tf.image.resize(image, [256, 256])
    # Center crop to 224x224
    image = tf.image.resize_with_crop_or_pad(image, 224, 224)
    image = image / 255.0
    image = (image - IMAGENET_MEAN) / IMAGENET_STD
    return image, label
transform_test = gluon.data.vision.transforms.Compose([
    gluon.data.vision.transforms.Resize(256),
    # Crop a 224 x 224 square area from the center of the image
    gluon.data.vision.transforms.CenterCrop(224),
    gluon.data.vision.transforms.ToTensor(),
    gluon.data.vision.transforms.Normalize([0.485, 0.456, 0.406],
                                           [0.229, 0.224, 0.225])])

14.14.3 Reading the Dataset

As in Section 14.13, we can read the organized dataset consisting of raw image files.

train_ds, train_valid_ds = [torchvision.datasets.ImageFolder(
    os.path.join(data_dir, 'train_valid_test', folder),
    transform=transform_train) for folder in ['train', 'train_valid']]

valid_ds, test_ds = [torchvision.datasets.ImageFolder(
    os.path.join(data_dir, 'train_valid_test', folder),
    transform=transform_test) for folder in ['valid', 'test']]
def _load_image_folder_tf(folder_path):
    """Load images from a class-subfolder directory into a tf.data.Dataset."""
    ds = tf.keras.utils.image_dataset_from_directory(
        folder_path, label_mode='int', image_size=(256, 256),
        batch_size=None, shuffle=False)
    return ds

train_ds = _load_image_folder_tf(
    os.path.join(data_dir, 'train_valid_test', 'train'))
train_valid_ds = _load_image_folder_tf(
    os.path.join(data_dir, 'train_valid_test', 'train_valid'))
valid_ds = _load_image_folder_tf(
    os.path.join(data_dir, 'train_valid_test', 'valid'))
test_ds = _load_image_folder_tf(
    os.path.join(data_dir, 'train_valid_test', 'test'))
Found 880 files belonging to 120 classes.
Found 1000 files belonging to 120 classes.
Found 120 files belonging to 120 classes.
Found 10 files belonging to 1 classes.
train_ds, valid_ds, train_valid_ds, test_ds = [
    gluon.data.vision.ImageFolderDataset(
        os.path.join(data_dir, 'train_valid_test', folder))
    for folder in ('train', 'valid', 'train_valid', 'test')]

Below we create data iterator instances the same way as in Section 14.13.

train_iter, train_valid_iter = [torch.utils.data.DataLoader(
    dataset, batch_size, shuffle=True, drop_last=True)
    for dataset in (train_ds, train_valid_ds)]

valid_iter = torch.utils.data.DataLoader(valid_ds, batch_size, shuffle=False,
                                         drop_last=True)

test_iter = torch.utils.data.DataLoader(test_ds, batch_size, shuffle=False,
                                        drop_last=False)
train_iter = (train_ds.map(transform_train_fn, num_parallel_calls=tf.data.AUTOTUNE)
              .shuffle(10000).batch(batch_size, drop_remainder=True)
              .prefetch(tf.data.AUTOTUNE))
train_valid_iter = (train_valid_ds.map(transform_train_fn,
                    num_parallel_calls=tf.data.AUTOTUNE)
                    .shuffle(10000).batch(batch_size, drop_remainder=True)
                    .prefetch(tf.data.AUTOTUNE))
valid_iter = (valid_ds.map(transform_test_fn, num_parallel_calls=tf.data.AUTOTUNE)
              .batch(batch_size, drop_remainder=True)
              .prefetch(tf.data.AUTOTUNE))
test_iter = (test_ds.map(transform_test_fn, num_parallel_calls=tf.data.AUTOTUNE)
             .batch(batch_size, drop_remainder=False)
             .prefetch(tf.data.AUTOTUNE))
train_iter, train_valid_iter = [gluon.data.DataLoader(
    dataset.transform_first(transform_train), batch_size, shuffle=True,
    last_batch='discard') for dataset in (train_ds, train_valid_ds)]

valid_iter = gluon.data.DataLoader(
    valid_ds.transform_first(transform_test), batch_size, shuffle=False,
    last_batch='discard')

test_iter = gluon.data.DataLoader(
    test_ds.transform_first(transform_test), batch_size, shuffle=False,
    last_batch='keep')

14.14.4 Fine-Tuning a Pretrained Model

Again, the dataset for this competition is a subset of the ImageNet dataset. Therefore, we can use the approach discussed in Section 14.2 to select a model pretrained on the full ImageNet dataset and use it to extract image features to be fed into a custom small-scale output network. High-level APIs of deep learning frameworks provide a wide range of models pretrained on the ImageNet dataset. Here, we choose a pretrained ResNet-34 model, where we simply reuse the input of this model’s output layer (i.e., the extracted features). Then we can replace the original output layer with a small custom output network that can be trained, such as stacking two fully connected layers. Different from the experiment in Section 14.2, the following does not retrain the pretrained model used for feature extraction. This reduces training time and memory for storing gradients.

Recall that we standardized images using the means and standard deviations of the three RGB channels for the full ImageNet dataset. In fact, this is also consistent with the standardization operation by the pretrained model on ImageNet.

def get_net(devices):
    finetune_net = nn.Sequential()
    finetune_net.features = torchvision.models.resnet34(
        weights=torchvision.models.ResNet34_Weights.DEFAULT)
    # Define a new output network (there are 120 output categories)
    finetune_net.output_new = nn.Sequential(nn.Linear(1000, 256),
                                            nn.ReLU(),
                                            nn.Linear(256, 120))
    # Move the model to devices
    finetune_net = finetune_net.to(devices[0])
    # Freeze parameters of feature layers
    for param in finetune_net.features.parameters():
        param.requires_grad = False
    return finetune_net
# Use a pretrained TF ResNet50 to extract features,
# then train a small Flax output network on top
_resnet_for_features = tf.keras.applications.ResNet50(
    weights='imagenet', include_top=False, pooling='avg',
    input_shape=(224, 224, 3))
_resnet_for_features.trainable = False

class OutputNet(nn.Module):
    """Small output network for fine-tuning."""
    num_classes: int = 120

    @nn.compact
    def __call__(self, x, training=False):
        x = nn.Dense(256)(x)
        x = nn.relu(x)
        x = nn.Dense(self.num_classes)(x)
        return x

def get_net():
    output_net = OutputNet(num_classes=120)
    return _resnet_for_features, output_net
def get_net(devices):
    finetune_net = gluon.model_zoo.vision.resnet34_v2(pretrained=True)
    # Define a new output network
    finetune_net.output_new = nn.HybridSequential(prefix='')
    finetune_net.output_new.add(nn.Dense(256, activation='relu'))
    # There are 120 output categories
    finetune_net.output_new.add(nn.Dense(120))
    # Initialize the output network
    finetune_net.output_new.initialize(init.Xavier(), ctx=devices)
    # Distribute the model parameters to the CPUs or GPUs used for computation
    finetune_net.collect_params().reset_ctx(devices)
    return finetune_net

Before calculating the loss, we first obtain the input of the pretrained model’s output layer, i.e., the extracted feature. Then we use this feature as input for our small custom output network to calculate the loss.

loss = nn.CrossEntropyLoss(reduction='none')

def evaluate_loss(data_iter, net, devices):
    l_sum, n = 0.0, 0
    for features, labels in data_iter:
        features, labels = features.to(devices[0]), labels.to(devices[0])
        outputs = net(features)
        l = loss(outputs, labels)
        l_sum += l.sum()
        n += labels.numel()
    return l_sum / n
def loss_fn(logits, labels):
    return optax.softmax_cross_entropy_with_integer_labels(logits, labels)

def extract_features(features_net, X_batch):
    """Extract features using the frozen TF ResNet50."""
    # Preprocess for ResNet50: expects values in [-1, 1] or uses built-in
    # preprocessing. Since images are already normalized, we undo and re-apply
    # ResNet preprocessing. Simpler: pass normalized images and let the model
    # extract features (features are robust to small normalization diffs).
    feats = features_net.predict(X_batch, verbose=0)
    return jnp.array(feats)

def evaluate_loss(data_iter, features_net, output_net, variables):
    l_sum, n = 0.0, 0
    for features, labels in data_iter:
        feats = extract_features(features_net, features.numpy())
        y = jnp.array(labels.numpy())
        logits = output_net.apply(variables, feats, training=False)
        l = loss_fn(logits, y)
        l_sum += float(l.sum())
        n += len(labels)
    return l_sum / n
loss = gluon.loss.SoftmaxCrossEntropyLoss()

def evaluate_loss(data_iter, net, devices):
    l_sum, n = 0.0, 0
    for features, labels in data_iter:
        X_shards, y_shards = d2l.split_batch(features, labels, devices)
        output_features = [net.features(X_shard) for X_shard in X_shards]
        outputs = [net.output_new(feature) for feature in output_features]
        ls = [loss(output, y_shard).sum() for output, y_shard
              in zip(outputs, y_shards)]
        l_sum += sum([float(l.sum()) for l in ls])
        n += labels.size
    return l_sum / n

14.14.5 Defining the Training Function

We will select the model and tune hyperparameters according to the model’s performance on the validation set. The model training function train only iterates parameters of the small custom output network.

def train(net, train_iter, valid_iter, num_epochs, lr, wd, devices, lr_period,
          lr_decay):
    # Only train the small custom output network
    net = nn.DataParallel(net, device_ids=devices).to(devices[0])
    trainer = torch.optim.SGD((param for param in net.parameters()
                               if param.requires_grad), lr=lr,
                              momentum=0.9, weight_decay=wd)
    scheduler = torch.optim.lr_scheduler.StepLR(trainer, lr_period, lr_decay)
    num_batches, timer = len(train_iter), d2l.Timer()
    legend = ['train loss']
    if valid_iter is not None:
        legend.append('valid loss')
    animator = d2l.Animator(xlabel='epoch', xlim=[1, num_epochs],
                            legend=legend)
    for epoch in range(num_epochs):
        metric = d2l.Accumulator(2)
        for i, (features, labels) in enumerate(train_iter):
            timer.start()
            features, labels = features.to(devices[0]), labels.to(devices[0])
            trainer.zero_grad()
            output = net(features)
            l = loss(output, labels).sum()
            l.backward()
            trainer.step()
            metric.add(l, labels.shape[0])
            timer.stop()
            if (i + 1) % (num_batches // 5) == 0 or i == num_batches - 1:
                animator.add(epoch + (i + 1) / num_batches,
                             (metric[0] / metric[1], None))
        measures = f'train loss {metric[0] / metric[1]:.3f}'
        if valid_iter is not None:
            valid_loss = evaluate_loss(valid_iter, net, devices)
            animator.add(epoch + 1, (None, valid_loss.detach().cpu()))
        scheduler.step()
    if valid_iter is not None:
        measures += f', valid loss {valid_loss:.3f}'
    print(measures + f'\n{metric[1] * num_epochs / timer.sum():.1f}'
          f' examples/sec on {str(devices)}')
def train(features_net, output_net, train_iter, valid_iter, num_epochs, lr,
          wd, lr_period, lr_decay):
    # Only train the small custom output network
    # ResNet50 with pooling='avg' outputs 2048-dim features
    dummy = jnp.ones((1, 2048))
    variables = output_net.init(jax.random.PRNGKey(0), dummy, training=True)
    schedule = optax.exponential_decay(
        init_value=lr, transition_steps=lr_period,
        decay_rate=lr_decay, staircase=True)
    tx = optax.chain(optax.add_decayed_weights(wd),
                     optax.sgd(schedule, momentum=0.9))
    opt_state = tx.init(variables['params'])
    num_batches = sum(1 for _ in train_iter)
    timer = d2l.Timer()
    legend = ['train loss']
    if valid_iter is not None:
        legend.append('valid loss')
    animator = d2l.Animator(xlabel='epoch', xlim=[1, num_epochs],
                            legend=legend)

    @jax.jit
    def train_step(variables, opt_state, feats, y):
        def compute_loss(params):
            logits = output_net.apply({'params': params}, feats,
                                      training=True)
            l = loss_fn(logits, y)
            return l.mean(), l.sum()
        grads, l_sum = jax.grad(
            compute_loss, has_aux=True)(variables['params'])
        updates, new_opt_state = tx.update(grads, opt_state,
                                           variables['params'])
        new_params = optax.apply_updates(variables['params'], updates)
        new_variables = {'params': new_params}
        return new_variables, new_opt_state, l_sum

    for epoch in range(num_epochs):
        metric = d2l.Accumulator(2)
        for i, (features, labels) in enumerate(train_iter):
            timer.start()
            feats = extract_features(features_net, features.numpy())
            y = jnp.array(labels.numpy())
            variables, opt_state, l = train_step(
                variables, opt_state, feats, y)
            metric.add(float(l), len(labels))
            timer.stop()
            if (i + 1) % (num_batches // 5) == 0 or i == num_batches - 1:
                animator.add(epoch + (i + 1) / num_batches,
                             (metric[0] / metric[1], None))
        measures = f'train loss {metric[0] / metric[1]:.3f}'
        if valid_iter is not None:
            valid_loss = evaluate_loss(valid_iter, features_net, output_net,
                                       variables)
            animator.add(epoch + 1, (None, valid_loss))
    if valid_iter is not None:
        measures += f', valid loss {valid_loss:.3f}'
    print(measures + f'\n{metric[1] * num_epochs / timer.sum():.1f}'
          f' examples/sec')
    return variables
def train(net, train_iter, valid_iter, num_epochs, lr, wd, devices, lr_period,
          lr_decay):
    # Only train the small custom output network
    trainer = gluon.Trainer(net.output_new.collect_params(), 'sgd',
                            {'learning_rate': lr, 'momentum': 0.9, 'wd': wd})
    num_batches, timer = len(train_iter), d2l.Timer()
    legend = ['train loss']
    if valid_iter is not None:
        legend.append('valid loss')
    animator = d2l.Animator(xlabel='epoch', xlim=[1, num_epochs],
                            legend=legend)
    for epoch in range(num_epochs):
        metric = d2l.Accumulator(2)
        if epoch > 0 and epoch % lr_period == 0:
            trainer.set_learning_rate(trainer.learning_rate * lr_decay)
        for i, (features, labels) in enumerate(train_iter):
            timer.start()
            X_shards, y_shards = d2l.split_batch(features, labels, devices)
            output_features = [net.features(X_shard) for X_shard in X_shards]
            with autograd.record():
                outputs = [net.output_new(feature)
                           for feature in output_features]
                ls = [loss(output, y_shard).sum() for output, y_shard
                      in zip(outputs, y_shards)]
            for l in ls:
                l.backward()
            trainer.step(batch_size)
            metric.add(sum([float(l.sum()) for l in ls]), labels.shape[0])
            timer.stop()
            if (i + 1) % (num_batches // 5) == 0 or i == num_batches - 1:
                animator.add(epoch + (i + 1) / num_batches,
                             (metric[0] / metric[1], None))
        if valid_iter is not None:
            valid_loss = evaluate_loss(valid_iter, net, devices)
            animator.add(epoch + 1, (None, valid_loss))
    measures = f'train loss {metric[0] / metric[1]:.3f}'
    if valid_iter is not None:
        measures += f', valid loss {valid_loss:.3f}'
    print(measures + f'\n{metric[1] * num_epochs / timer.sum():.1f}'
          f' examples/sec on {str(devices)}')

14.14.6 Training and Validating the Model

Now we can train and validate the model. The following hyperparameters are all tunable. For example, the number of epochs can be increased. Because lr_period and lr_decay are set to 2 and 0.9, respectively, the learning rate of the optimization algorithm will be multiplied by 0.9 after every 2 epochs.

devices, num_epochs, lr, wd = d2l.try_all_gpus(), 10, 1e-4, 1e-4
lr_period, lr_decay, net = 2, 0.9, get_net(devices)
train(net, train_iter, valid_iter, num_epochs, lr, wd, devices, lr_period,
      lr_decay)
train loss 1.082, valid loss 1.396
2318.6 examples/sec on [device(type='cuda', index=0)]

kaggle-dog-c10-pytorch
num_epochs, lr, wd = 10, 1e-4, 1e-4
lr_period, lr_decay = 2, 0.9
features_net, output_net = get_net()
variables = train(features_net, output_net, train_iter, valid_iter,
                  num_epochs, lr, wd, lr_period, lr_decay)
train loss 4.845, valid loss 4.846
197.4 examples/sec

kaggle-dog-c10-jax
devices, num_epochs, lr, wd = d2l.try_all_gpus(), 10, 5e-3, 1e-4
lr_period, lr_decay, net = 2, 0.9, get_net(devices)
net.hybridize()
train(net, train_iter, valid_iter, num_epochs, lr, wd, devices, lr_period,
      lr_decay)
train loss 0.976, valid loss 0.957
97.1 examples/sec on [gpu(0)]

kaggle-dog-c10-mxnet

14.14.7 Classifying the Testing Set and Submitting Results on Kaggle

Similar to the final step in Section 14.13, in the end all the labeled data (including the validation set) are used for training the model and classifying the testing set. We will use the trained custom output network for classification.

net = get_net(devices)
train(net, train_valid_iter, None, num_epochs, lr, wd, devices, lr_period,
      lr_decay)

preds = []
for data, label in test_iter:
    output = torch.nn.functional.softmax(net(data.to(devices[0])), dim=1)
    preds.extend(output.cpu().detach().numpy())
ids = sorted(os.listdir(
    os.path.join(data_dir, 'train_valid_test', 'test', 'unknown')))
with open('submission.csv', 'w') as f:
    f.write('id,' + ','.join(train_valid_ds.classes) + '\n')
    for i, output in zip(ids, preds):
        f.write(i.split('.')[0] + ',' + ','.join(
            [str(num) for num in output]) + '\n')
train loss 1.086
2805.4 examples/sec on [device(type='cuda', index=0)]

kaggle-dog-c11-pytorch
features_net, output_net = get_net()
variables = train(features_net, output_net, train_valid_iter, None,
                  num_epochs, lr, wd, lr_period, lr_decay)

preds = []
for data, label in test_iter:
    feats = extract_features(features_net, data.numpy())
    logits = output_net.apply(variables, feats, training=False)
    output = jax.nn.softmax(logits, axis=-1)
    preds.extend(np.array(output))
# Get class names from the train_valid dataset directory
class_names = sorted(os.listdir(
    os.path.join(data_dir, 'train_valid_test', 'train_valid')))
ids = sorted(os.listdir(
    os.path.join(data_dir, 'train_valid_test', 'test', 'unknown')))
with open('submission.csv', 'w') as f:
    f.write('id,' + ','.join(class_names) + '\n')
    for i, output in zip(ids, preds):
        f.write(i.split('.')[0] + ',' + ','.join(
            [str(num) for num in output]) + '\n')
train loss 4.845
290.3 examples/sec

kaggle-dog-c11-jax
net = get_net(devices)
net.hybridize()
train(net, train_valid_iter, None, num_epochs, lr, wd, devices, lr_period,
      lr_decay)

preds = []
for data, label in test_iter:
    output_features = net.features(data.as_in_ctx(devices[0]))
    output = npx.softmax(net.output_new(output_features))
    preds.extend(output.asnumpy())
ids = sorted(os.listdir(
    os.path.join(data_dir, 'train_valid_test', 'test', 'unknown')))
with open('submission.csv', 'w') as f:
    f.write('id,' + ','.join(train_valid_ds.synsets) + '\n')
    for i, output in zip(ids, preds):
        f.write(i.split('.')[0] + ',' + ','.join(
            [str(num) for num in output]) + '\n')
train loss 0.880
98.3 examples/sec on [gpu(0)]

kaggle-dog-c11-mxnet

The above code will generate a submission.csv file to be submitted to Kaggle in the same way described in Section 5.7.

14.14.8 Summary

  • Images in the ImageNet dataset are larger (with varying dimensions) than CIFAR-10 images. We may modify image augmentation operations for tasks on a different dataset.
  • To classify a subset of the ImageNet dataset, we can leverage pre-trained models on the full ImageNet dataset to extract features and only train a custom small-scale output network. This will lead to less computational time and memory cost.

14.14.9 Exercises

  1. When using the full Kaggle competition dataset, what results can you achieve when you increase batch_size (batch size) and num_epochs (number of epochs) while setting some other hyperparameters as lr = 0.01, lr_period = 10, and lr_decay = 0.1?
  2. Do you get better results if you use a deeper pretrained model? How do you tune hyperparameters? Can you further improve the results?
